Crack Geometry with Confidence

CAT Geometry Practice Questions Designed for Maximum Concept Clarity

1. CAT - Geometry

The length of the line joining the midpoints of the non-parallel sides of an isosceles trapezium is 24. If the aforementioned line divides the trapezium in two parts with the areas in ratio 7: 9, then what is the absolute difference (in cm) between the parallel sides of the trapezium?
  1. 12π/5
  2. 14π /5
  3. 205π/9
  4. 123π /7

Correct Answer

12
Video Explanation

2. CAT - Geometry

P is any point inside triangle ABC such that PA = 5 units, PB = 6 units and PC = 8 units. Also ∠APB=120 degree and ∠APC=150 degree. The approximate perimeter of triangle ABC is:
  1. 32 Units
  2. 68 Units
  3. 50 Units
  4. 48 Units

Correct Answer

1. 32 Units
Video Explanation

3. CAT - Geometry

AF bisects angle EAD in a square ABCD, if FD = 64 cm, and BE = 36 cm, find AE.

Correct Answer

100
Video Explanation

4. CAT - Geometry

A square ABCD with side 8 has point E on AD, the value of BE+CE is definitely greater than:

  1. 8√5
  2. 8√6
  3. 8√7
  4. CBD

Correct Answer

1. 8√5
Video Explanation

5. CAT - Geometry

3 altitudes of triangle PQR have lengths 4,6 and 8 respectively, If P PQR has in-radius of length y, find 13y

Correct Answer

24
Video Explanation

6. CAT - Geometry

ABC is an equilateral triangle with O a point in it, with AO, BO and CO being 6,8,10. If triangle has an area of a√3 + b, find a+b.

Correct Answer

60
Video Explanation

7. CAT - Geometry

In a triangle ABC, AB = 60, BC= 80, CA= 100. D is a point on AC such that perimeters of triangles ABD and CBD are equal. If the length of BD is AV5, find the value of A.3 altitudes of triangle PQR have lengths 4,6 and 8 respectively, If P PQR has in-radius of length y, find 13y

Correct Answer

24
Video Explanation

8. CAT - Co-ordinate Geometry

Let P be the point of intersection of the lines 3x + 4y = 2a and 7x + 2y = 2018 and Q the point of intersection of the lines 3x + 4y = 2018 and 5x + 3y = 1. If the line through P and Q has slope 2, the value of a is:3 altitudes of triangle PQR have lengths 4,6 and 8 respectively, If P PQR has in-radius of length y, find 13y

  1. 1
  2. 1/2
  3. 4035
  4. 1009
  5. 3026

Correct Answer

5. 3026
Video Explanation

9. CAT - Geometry

A triangle has its longest side as 38 cm. If one of the other two sides is 10 cm and the area of the triangle is 152 sq.cm, and the length of the third side is AVB,find the value of A+B .

Correct Answer

25
Video Explanation

10. CAT - Geometry

The length of sides AB, BC and CA of a triangle ABC is 7 cm, 10 cm and 12 cm respectively. AB is extended to D such that AD = 28 cm. BC is extended to E such that BE = 20 cm. CA is extended to F such that CF = 36 cm. What is the ratio of the area of triangle ABC to the area of triangle DEF?

Correct Answer

1:18
Video Explanation

11. CAT - Geometry

PQR is a right angled triangle where angle R is 90 degree. S is a point on PQ such that PS 29 and QS=1 and RS=13. Find area of triangle QRS.

Correct Answer

6
Video Explanation

12. CAT - Geometry

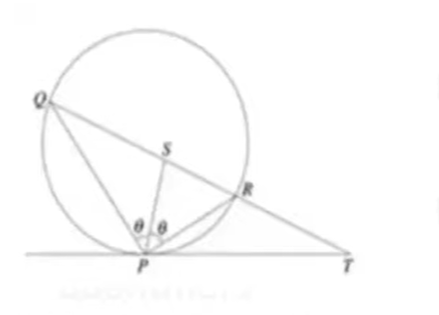

In the diagram, P,Q and R lie on a circle, the tangent at P and the secant QR intersect at T. The bisector of angle QPR meet at S so that QPS = RPS, If SQ=3 and PT = 4, Find length of RS

CAT exam Geometry

Correct Answer

12/7
Video Explanation

13. CAT - Geometry

In a triangle ABC side AC and the perpendicular bisector of side BC meet in point D and BD bisects angle abc. if ad is 9 DC is 7 find the area of triangle ABD

Correct Answer

14√5
Video Explanation

14. CAT - Geometry

A circle of diameter 8 inches is inscribed in a triangle ABC where angle ABC= 90 degree. If BC = 10 inches then the area of the triangle in square inches is:

Correct Answer

120
Video Explanation

15. CAT - Geometry

If the area of a regular hexagon is equal to the area of an equilateral triangle of side 12 cm, then the length, in cm, of each side of the hexagon is:

  1. 6√6
  2. 2√6
  3. √6
  4. 4√6

Correct Answer

2. 2√6
Video Explanation

16. CAT - Geometry

Suppose the length of each side of a regular hexagon ABCDEF is 2 cm. It T is the mod point of CD, then the length of AT, in cm, is:

  1. √13
  2. √15
  3. √14
  4. √12

Correct Answer

1. √13
Video Explanation

17. CAT - Geometry

The sides AB and CD of a trapezium ABCD are parallel, with AB being the smaller side. P is the midpoint of CD and ABPD is a parallelogram. If the difference between the areas of the parallelogram ABPD and the triangle BPC is 10 sq cm, then the area, in sq cm, of the trapezium ABCD is:

  1. 40
  2. 25
  3. 20
  4. 30

Correct Answer

4. 30
Video Explanation

18. CAT - Geometry

If a rhombus has area 12 sq cm and side length 5 cm, then the length, in cm, of its longer diagonal is:

  1. √30 + √12
  2. √37 + √13
  3. (√13 + √12) / 2
  4. (√37 + √13) / 2

Correct Answer

2. √37 + √13
Video Explanation

19. CAT - Geometry

Let ABCD is a parallelogram. The lengths of the sides AD and the diagonal AC are 10 cm and 20 cm, respectively. If the angle ADC is 30 degree, then the area of the parallelogram, in sq. cm, is

  1. 25 (√5 + √15)
  2. 25 (√3 + √15)
  3. 25 (√5 + √15) / 2
  4. 25 (√3 + √15) / 2

Correct Answer

2. 25 (√3 + √15)
Video Explanation

20. CAT - Geometry

A park is shaped like a rhombus and has area 96 sq m. If 40 m of fencing is needed to enclose the park, the cost, in INR, of laying electric wires along its two diagonals, at the rate of ₹125 per m, is:

Correct Answer

3500
Video Explanation

21. CAT - Geometry

In a triangle ABC, angle BCA = 50 degree. D and E are points on AB and AC, respectively, such that AD = DE. If F is a point on BC such that BD = DF, then angle FDE, in degrees, is equal to
  1. 72
  2. 100
  3. 96
  4. 80

Correct Answer

4. 80
Video Explanation

22. CAT - Geometry

In ΔABC, ∠B = 900. PQRS is a square of side 5 units and WXYZ is a square of side 10 units. MS and SY are the length and breadth respectively of rectangle MNSY. What is the length of MS?

  1. 12 cm
  2. 15 cm
  3. 25 cm
  4. 20 cm

Correct Answer

2. 15 cm
Video Explanation

23. CAT - Geometry

The vertices of a triangle are (0, 0), and (4, 0) and (3, 9). The area of the circle passing through these three points is:

  1. 12π/5
  2. 14π /5
  3. 205π/9
  4. 123π /7

Correct Answer

3. 205π /9
Video Explanation

24. CAT - Geometry

In triangle ABC, M is the midpoint of the side AB. N is point in the interior of aking triangle ABC, such that CN is the bisector of angle C and CN is perpendicular to NB. What is the area of triangle BMN and AMN if CN=6, BC= 10cm and AC = 15cm?

Correct Answer

6
Video Explanation

25. CAT - Geometry

In a triangle PQR, S is a point on QR and T is a point on PR such that PQ= PR and PS-PT.Angle QPS= 40 degrees. Find angle TSR

Correct Answer

20
Video Explanation

26. CAT - Geometry

BD and CE are the medians of triangle ABC, right angled at A. If CE=5V13/2 and BC=10 then length of BD is

Correct Answer

5√7 / 2
Video Explanation

27. CAT - Geometry

PQRS is an isosceles trapezium in which PQ is parallel to RS and X is the mid point of PS. If PX= 8 and angle QXR= 90 degrees. Fine the perimeter of the trapezium PQRS.

Correct Answer

48
Video Explanation

28. CAT - Geometry

Length of sides of two rhombuses differ by 2. One of the diagonals for each of the rhombuses is of the same length as that of its side. Product of their areas is 168.75. Find the side of smaller

Correct Answer

3
Video Explanation

29. CAT - Geometry

BD and CE are the medians of the triangle ABC right angled at A. If CE = 5√13/2 and BC = 10, then the length of BD is:

Correct Answer

5√7 / 2
Video Explanation

30. CAT - Geometry

ABCD is a rhombus where E is a point on diagonal AC such that AC = 50 and AE = 41. Angle ABE = 90 degree. Find the area of rhombus.

Correct Answer

√37 + √13
Video Explanation

31. CAT - Geometry

ABCD is a rhombus where E is a point on diagonal AC such that AC = 50 and AE = 41. Angle ABE = 90 degree. Find the area of rhombus.

Correct Answer

1000
Video Explanation

32. CAT - Geometry

Consider triangle with sides in the ratio 1: 1: √n and angles in the ratio 1: 1: m where m, n are distinct natural numbers. What is the value of m + n?

Correct Answer

7
Video Explanation

33. CAT - Geometry

In the figure above, arc SBT is one quarter of a circle with center R and radius 6. If the length plus the width of rectangle ABCR is 8, then the perimeter of the shaded part is:
cat geometry

Correct Answer

3π + 10
Video Explanation

34. CAT - Geometry

Product of two sides of a triangle is 6. If all three sides are having integral value, then how many such obtuse angle triangles are possible?

Correct Answer

2
Video Explanation

Understanding Geometry

The Geometry segment of the Quantitative Aptitude of CAT tests an individual for critical concepts relating to triangles, circles, quadrilaterals, polygons, and combinations. Generally, this section has 4-6 questions in the actual exam. This is why it has heavy weightage, so one should know how to apply geometry well. The best approach to studying it is by practicing a multitude of problems. Aspirants can use the free CAT questions provided by Quantifiers that are accompanied by detailed solutions and video explanations from experts on CAT to improve their knowledge and performance.
